Enea LINX is an open technology for distributed system IPC which is platform and interconnect independent, scales well to large systems with any topology, but that still has the performance needed for high traffic bearing components of the system. It is based on a transparent message passing method.

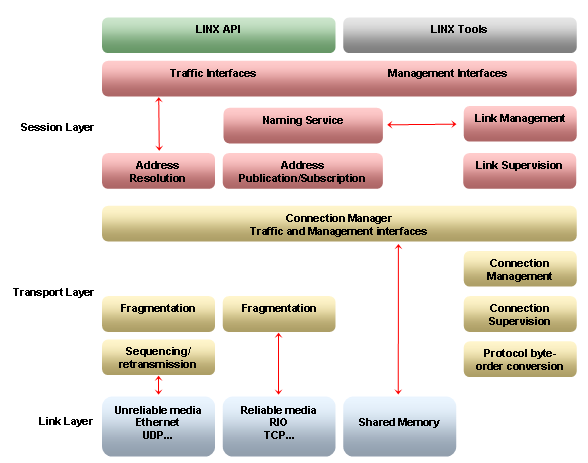

Figure 2.1 LINX Architecture

Enea LINX provides a solution for inter process communication for the growing class of heterogeneous systems using a mixture of operating systems, CPUs, microcontrollers DSPs and media interconnects such as shared memory, RapidIO, Gigabit Ethernet or network stacks. Architectures like this poses obvious problems, endpoints on one CPU typically uses the IPC mechanism native to that particular platform and they are seldom usable on platform running other OSes. For distributed IPC other methods, such as TCP/IP, must be used but that comes with rather high overhead and TCP/IP stacks may not be available on small systems like DSPs. Enea LINX solves the problem since it can be used as the sole IPC mechanism for local and remote communication in the entire heterogeneous distributed system.

The Enea LINX protocol stack has two layers - the RLNH and the Connection Manager, or CM, layers. RLNH corresponds to the session layer in the OSI model and implements IPC functions including methods to look up endpoints by name and to supervise to get asynchronous notifications if they die. The Connection Manager layer corresponds to the transport layer in the OSI model and implements reliable in order transmission of arbitrarily sized messages over any media.

RLNH is responsible for resolving remote endpoint names, and for setting up and removing local representations of remote endpoints. The RLNH layer provides translation of endpoint OS IDs from the source to the destination system. It also handles the interaction with the local OS and applications that use the Enea LINX messaging services. RLNH consists of a common, OS independent protocol module and an OS adaptation layer that handles OS specific interactions.

The Connection Manager provides a reliable transport mechanism for RLNH. When the media is unreliable, such as Ethernet, or have other quirks the Connection Manager must implement means like flow control, retransmission of dropped packets, peer supervision, and becomes much more complex. On reliable media, such as shared memory or RapidIO, Connection Managers can be quite simple.

The rest of this document contains a detailed description of the protocols used by the RLNH and the CM layers of Enea LINX. Chapter 3 describes the RLNH protocol. Chapter 4 describes features shared by all Connection Managers, i.e. what RLNH requires from a Connection Manager. The description is intentionally kept on a high level since the functionality actually implemented in any instance of a CM depends very much on the properties of the underlying media. It is the intention that when Connection Managers for new media are implemented the protocols will be described in the following chapters. Finally Chapter 5 describes version two of the Ethernet Connection Manager protocol.

The table below shows how protocol headers are described. PDUs are sent in network byte order (e.g. big endian). Bits and bytes are numbered in the order they are transmitted on the media. For example:

The first row shows bit numbers, the second row byte numbers for those more comfortable with that view, and the last row example protocol fields. In the header above, the fields in the header are sent in order: one, two, three, reserved, four.
